Analysis

Hysteretic characteristics of our product are shown in high-accuracy modeling. General-purpose dynamic analysis software allows us to check the effects of the product installed in a building.

Test picture

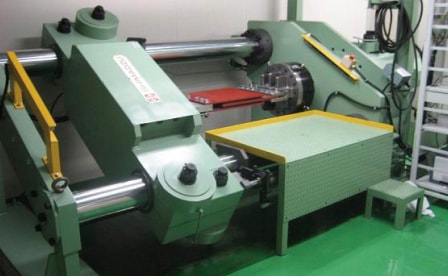

Test picture1

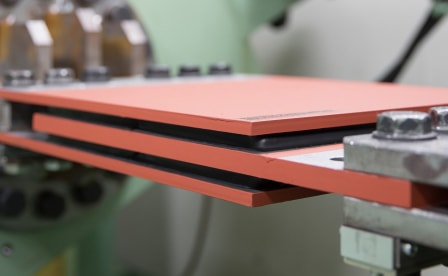

Test picture2

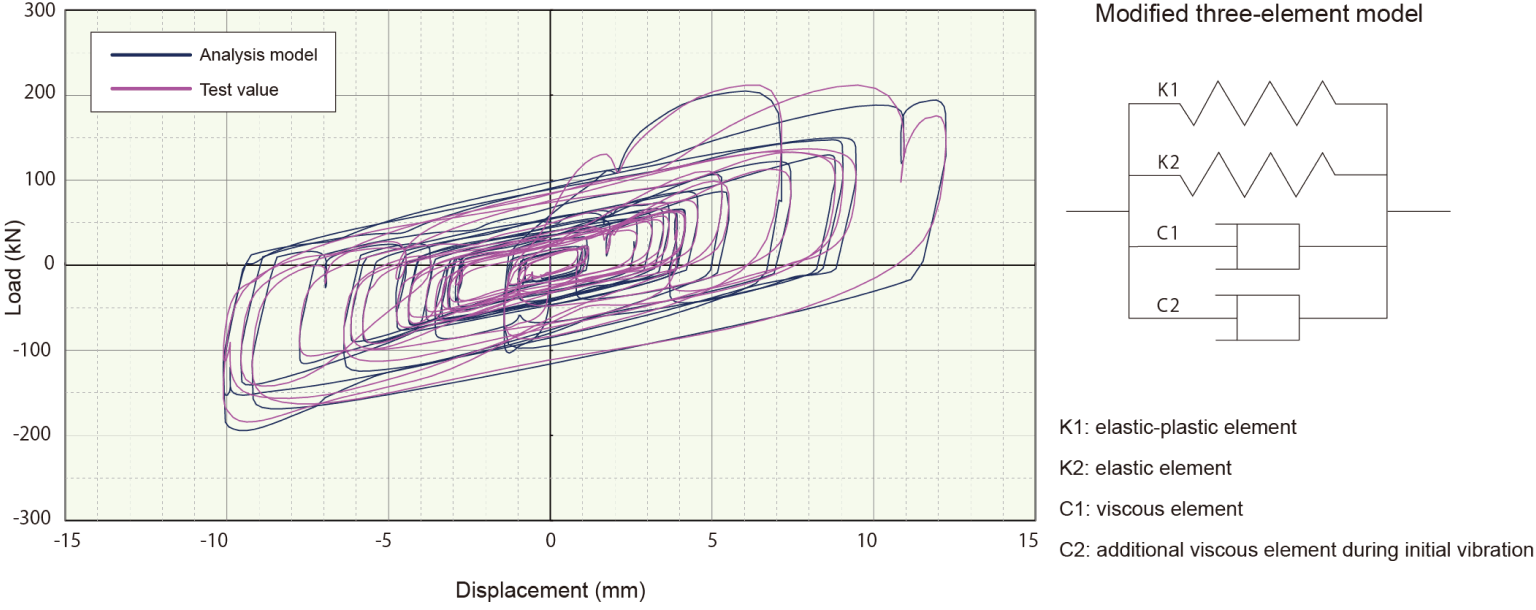

Modeling

Modeling

The analysis model of Sumitomo Rubber's building-specific vibration-control damper is included in the general-purpose dynamic analysis software.

  • SNAP Ver.6 from KOZO SYSTEM, INC.
  • SS21/Dynamic PRO, SS21/3D・Dynamic PRO from UNION SYSTEM Inc.
  • RESP-D,RESP-F3T from KOZO KEIKAKU ENGINEERING Inc
  • midas iGen from MIDAS IT Japan Co., Ltd.
  • midas Gen from MIDAS Information Technology Co., Ltd.

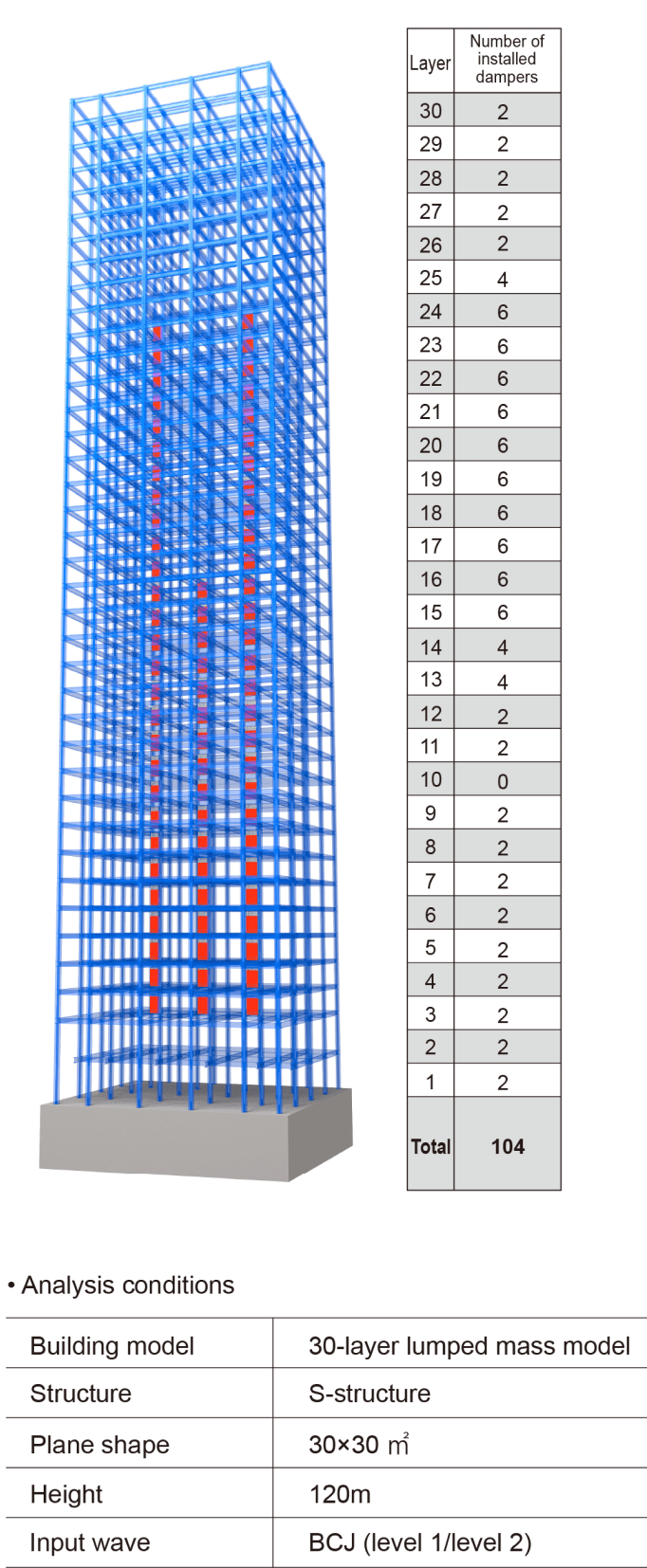

Response analysis

Response analysis

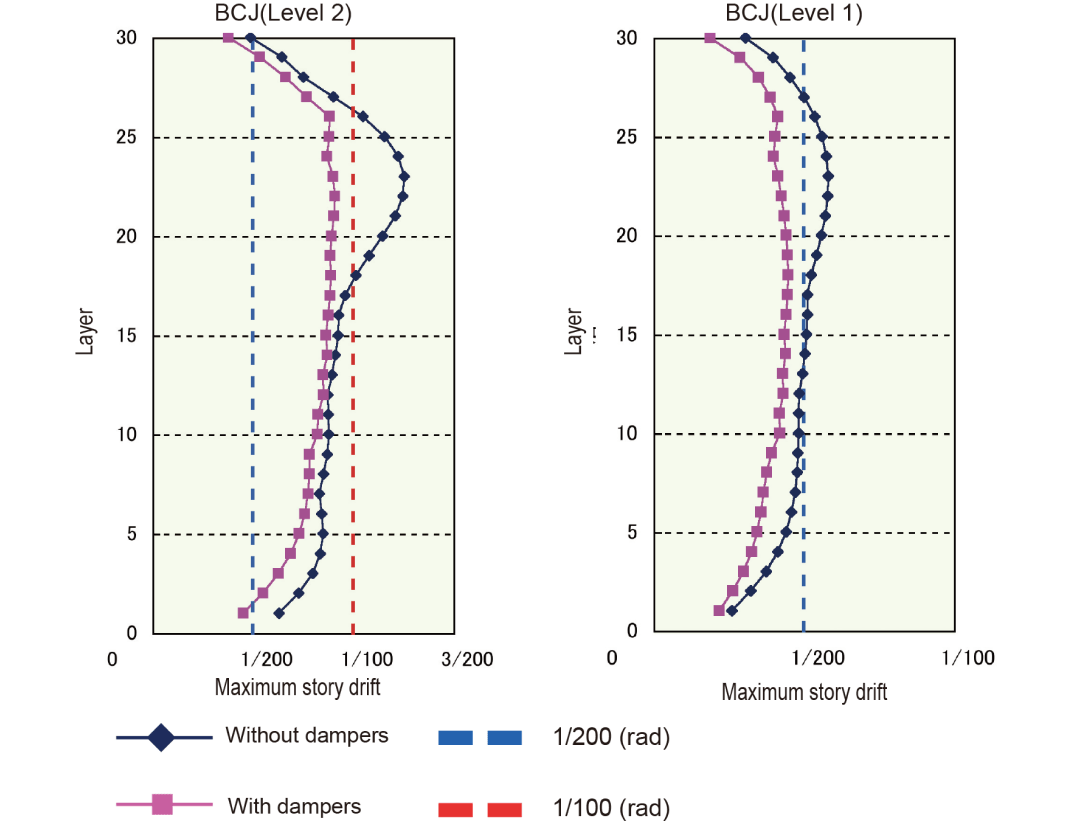

Maximum story drift

Maximum story drift

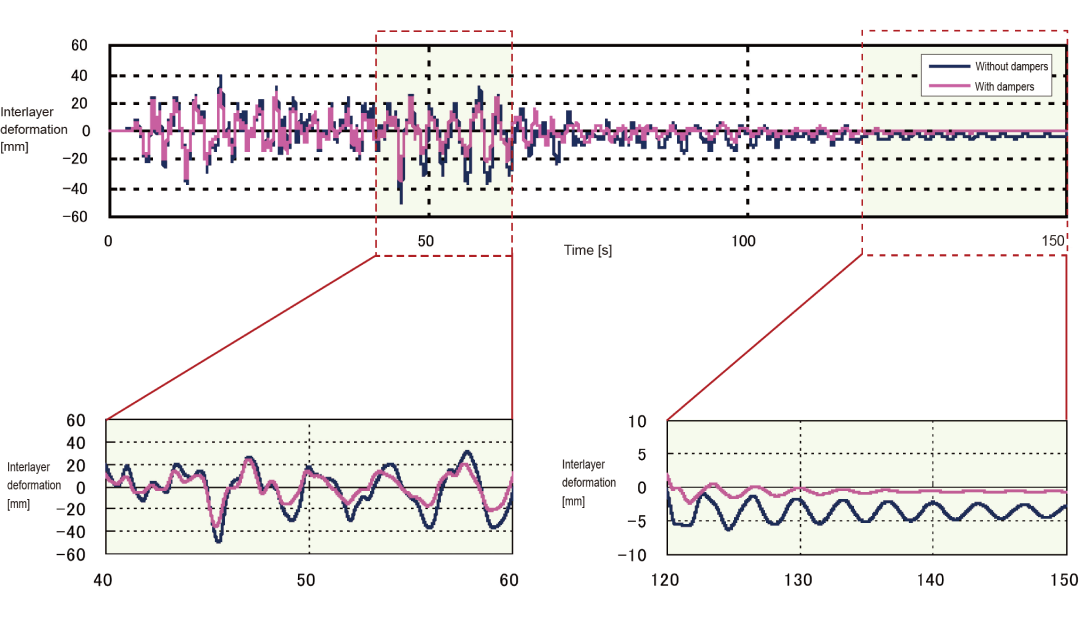

Time history response (BCJ Level)

Time history response (BCJ Level)
